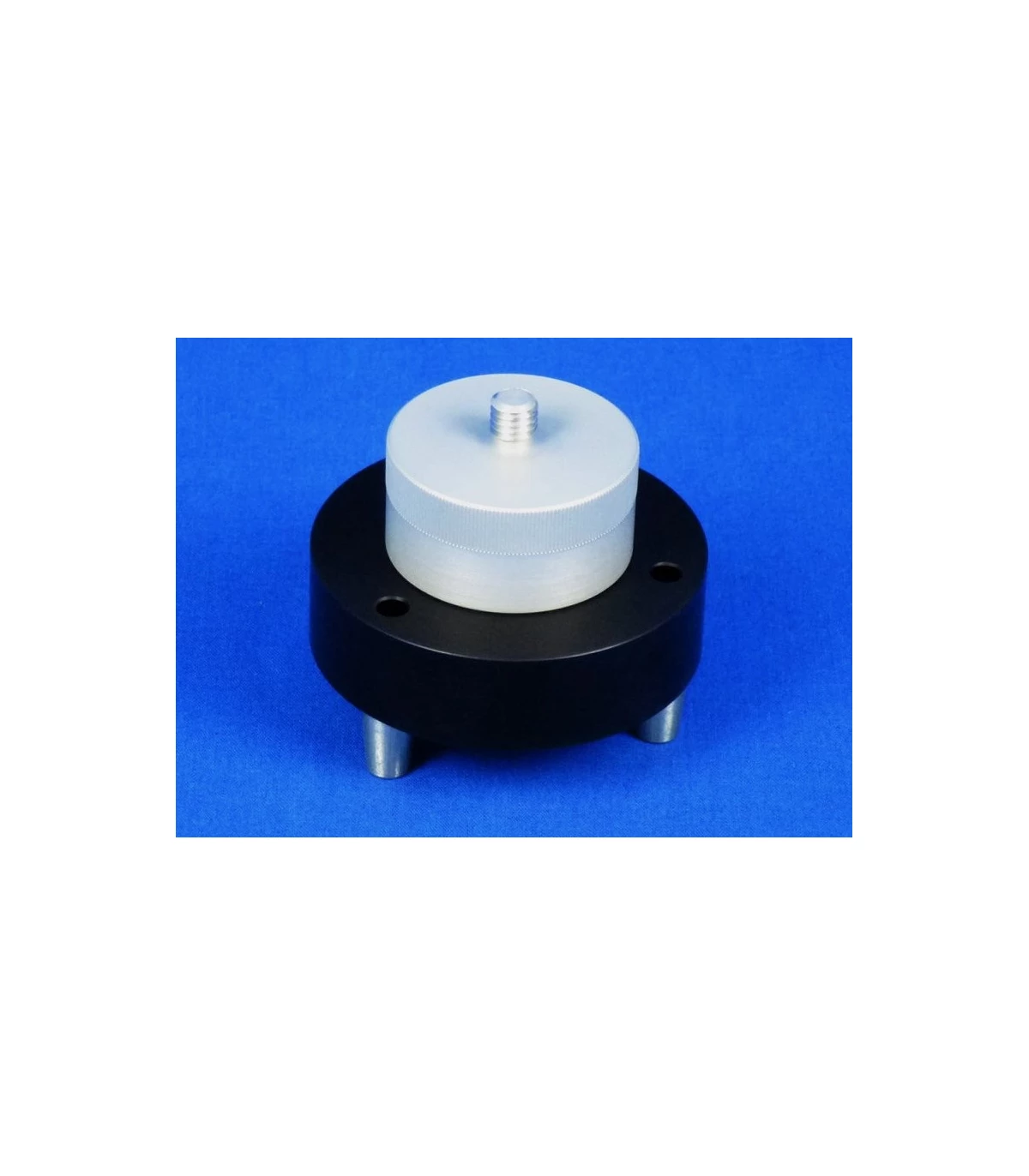

Adaptateur Fixe Scanner FARO - Embase

Due to this adapter, rapid and safe mounting and dismounting of the FARO Focus on a tripod with claw system is no problem any longer. You can assemble your scanner with positive centering exactly on a fixed point.

Product characteristics:

• diameter: 80mm (3.15 in), height: 48mm (1.89 in)
• adapter suited for all claw systems
• 3/8 in male thread; thread length: 10mm (0.93 in)
• weight: 750g

Designated use:

• positive centering of your scanner on a tripod with claw system
• positioning of your scanner on points marked on the ground

Scope of application:

• working with positive centering
• rapid assembly and disassembly of the FARO Focus
• clamping the FARO Focus in tripods with claw system don't poses a problem any longer
• Connect the fixed points marked on the ground with your laser scanning project by rigging up a tripod on a fixed point and clamping the tripod adapter into your existing tripod.

Compatible laser scanner:

• FARO Focus3D S 20
• FARO Focus3D S 120
• FARO Focus3D X 30
• FARO Focus3D X 130
• FARO Focus3D X 330
• FARO Focus S 70
• FARO Focus S 150
• FARO Focus S 350
• FARO Focus M 70
• Trimble TX5

Delivery contents:

• 1 tripod adapter (5/8 inch to 3/8 inch) for FARO Focus
• 1 tripod adapter with claw System
