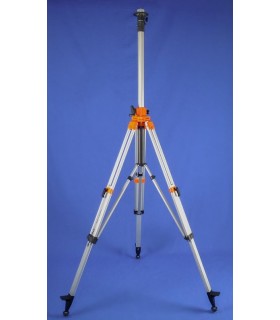

Trépied Alu à crémaillère pour scanner FARO FOCUS / TX5 hmaxi : 3.02m

Trépied Alu à crémaillère pour scanner FARO FOCUS / TX5  hmaxi : 3.02m Agrandir l'image

ATX5009

Nouveau

Trépied Alu à crémaillère pour scanner FARO FOCUS / TX5  hmaxi : 3.02m

Plus de détails

Description

Flexible: scan several positions; adjustable in height

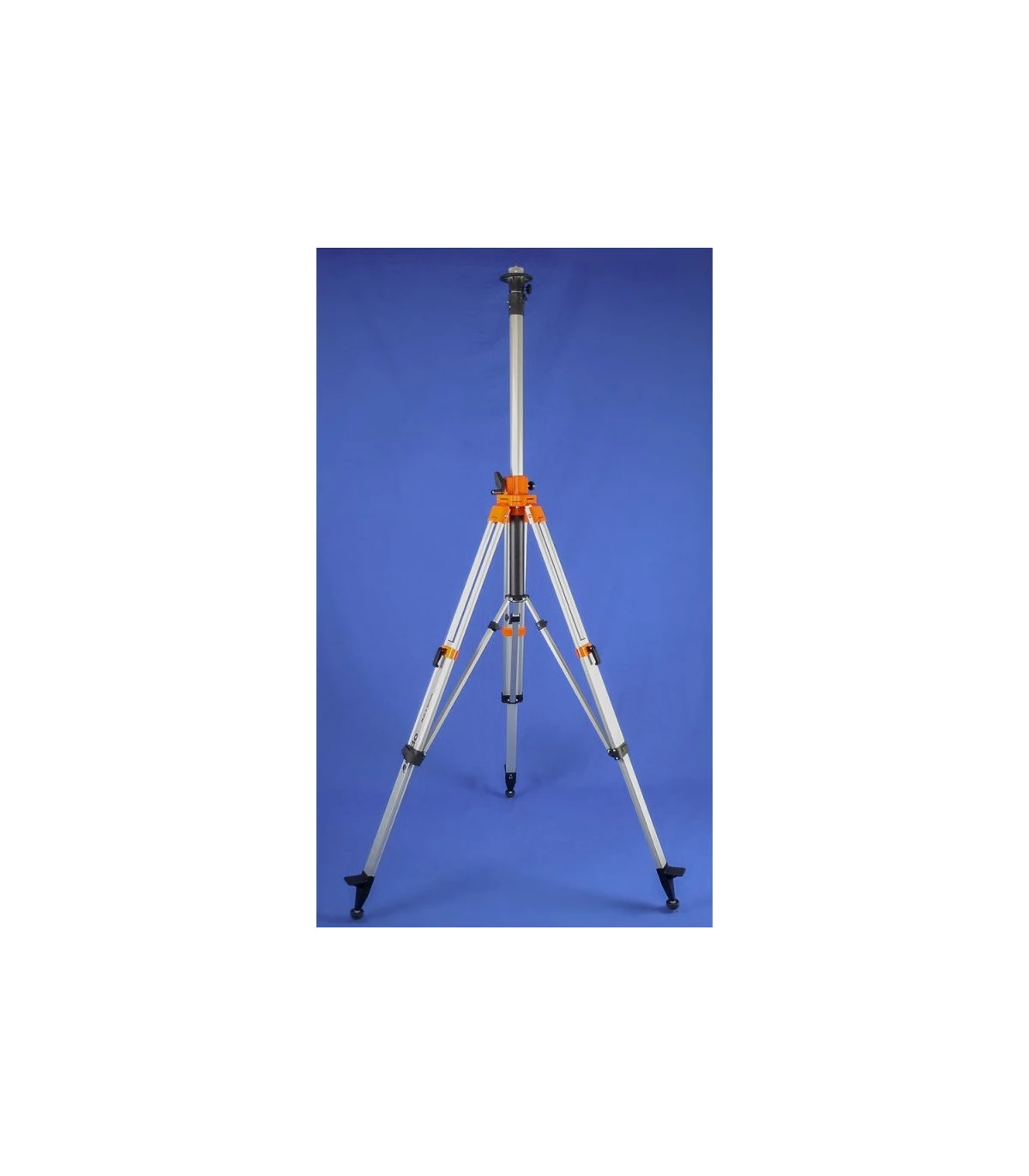

Make your routine scanning easier with the telescope tripod. Due to the telescope tripod's high range of height used, you can save annoying or complex erections of platforms or scanners.

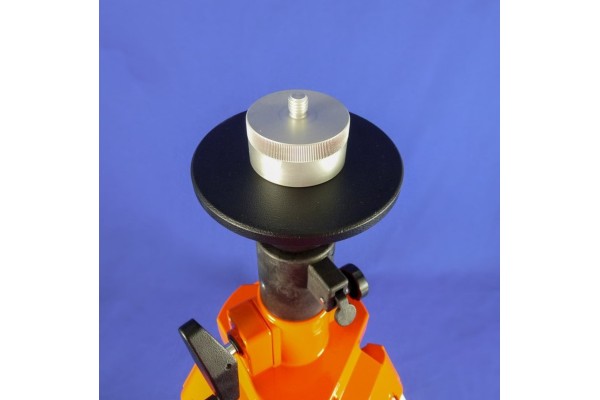

The aluminum telescope tripod possesses a 5/8 inch connection. The 3/8 inch connection adapter included in the delivery contents allows the use of the tripod combined with the FARO Focus.

Designated use:

  • use scanner over several heights - without erection, disassembly or modification
  • enlargement of the possible scan positions

Product characteristics:

  • tripod: 5/8 inch connection
  • adapter: 3/8 inch connection for FARO Focus

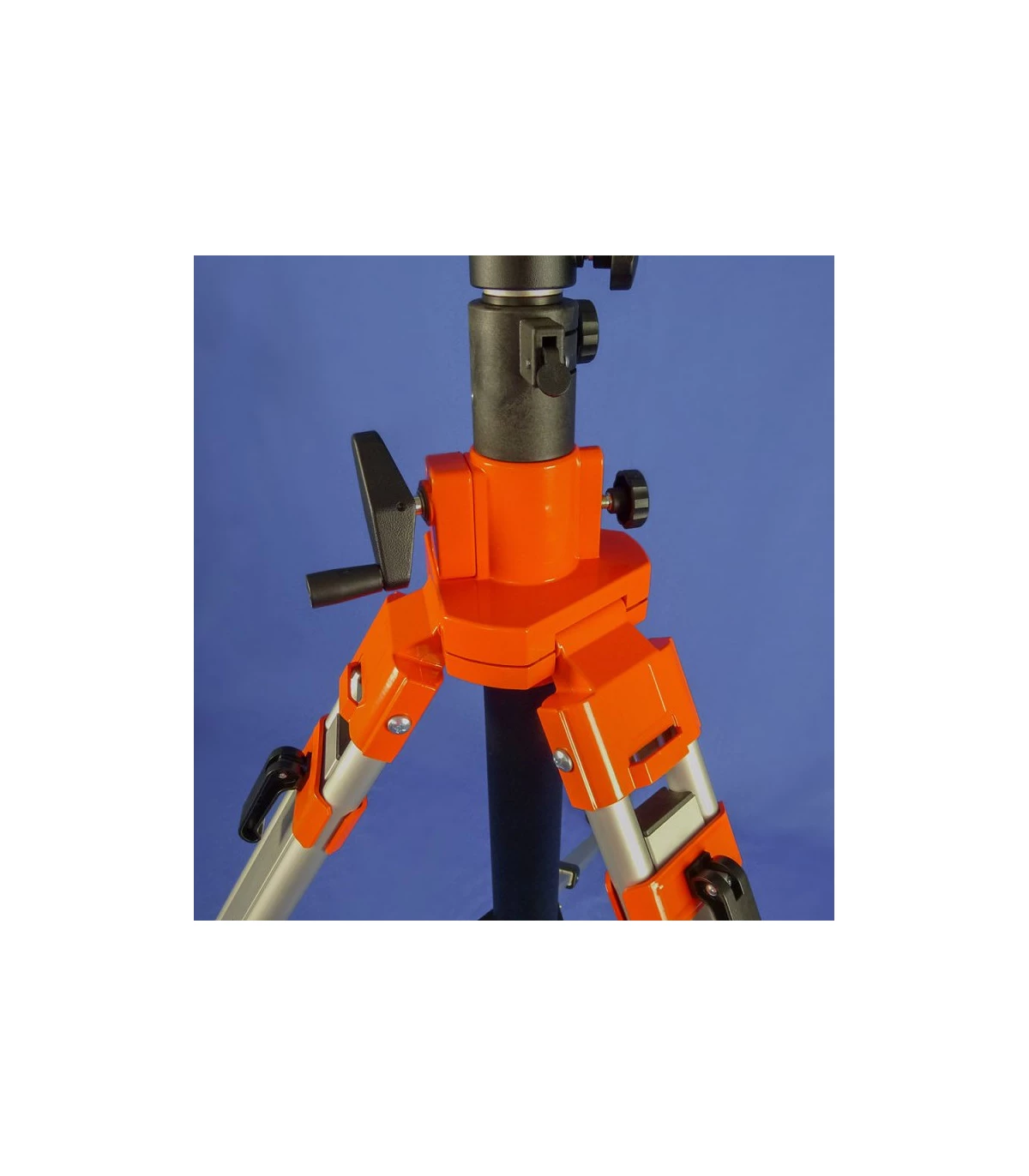

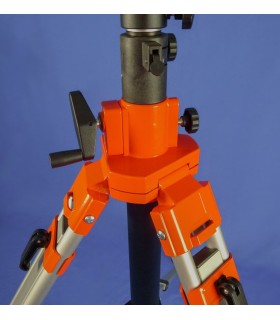

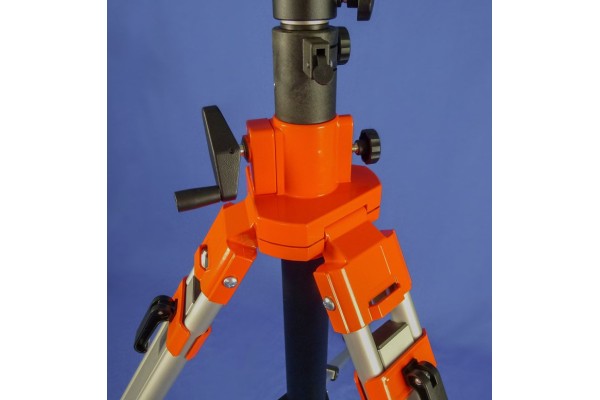

  • indirect crank drive
  • enhanced telescopic tube
  • additional leg braces
  • quick locking mechanism
  • spirit level
  • set of shoes for tripod
  • minimum effective height: approx. 0.85m
  • maximum effective height: approx. 3.02m
  • transport length: approx. 1.32m
  • weight: approx. 8.75kg

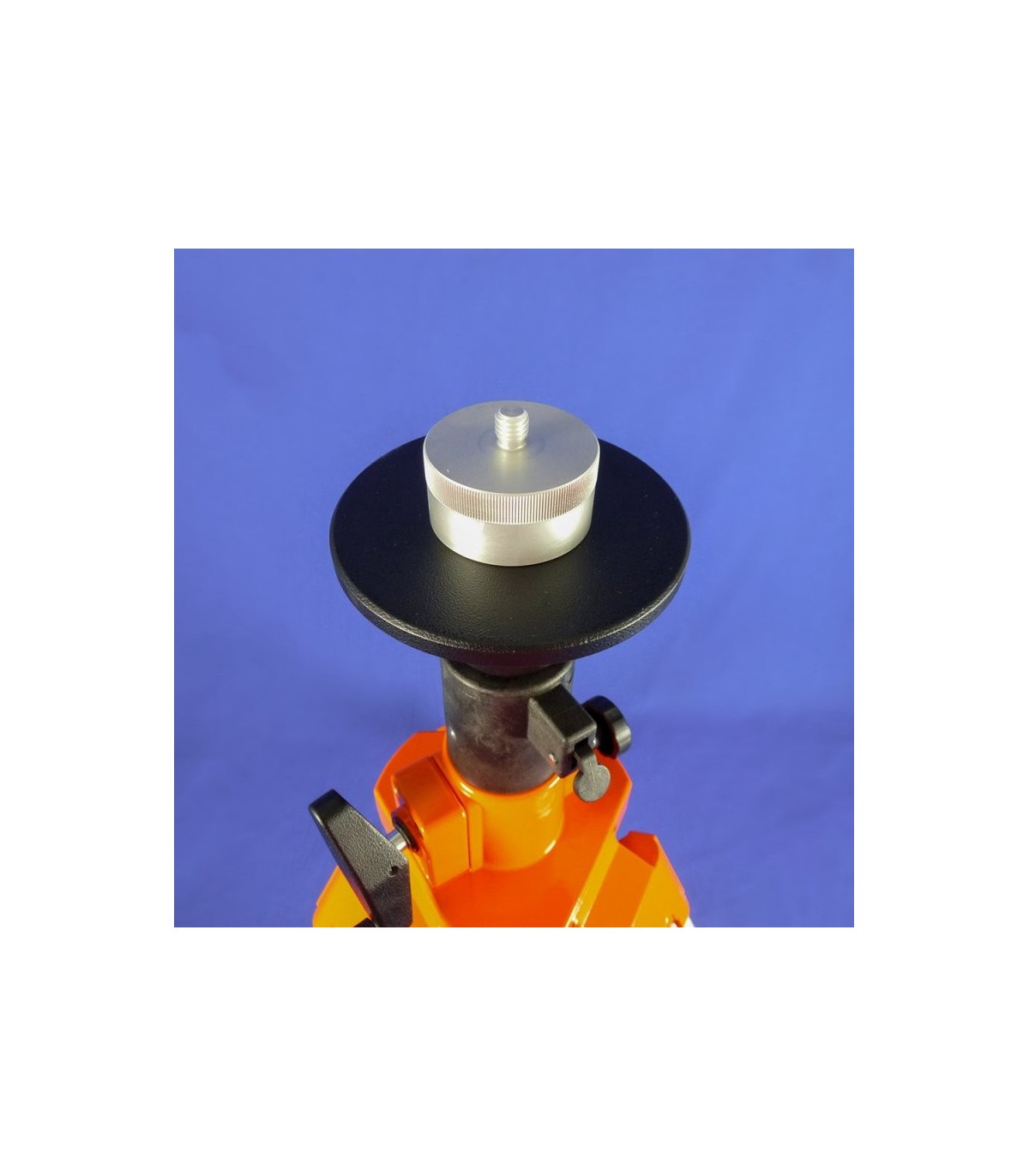

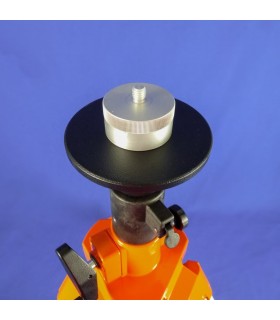

  • flat support plate with ø 110mm
  • double telescope
  • telescope lift 55/590mm

Compatible laser scanners:

  • FARO Focus3D S 20
  • FARO Focus3D S 120
  • FARO Focus3D X 30
  • FARO Focus3D X 130
  • FARO Focus3D X 330
  • FARO Focus S 70
  • FARO Focus S 150
  • FARO Focus S 350
  • FARO Focus M 70
  • Trimble TX5 (3/8 inch connection)

Delivery contents:

  • 1 aluminum telescope tripod with 5/8 inch connection
  • 3/8 inch adapter for using the FARO Focus on 5/8 inch tripod
Vous aimerez aussi

460,00 € HT
